Fabric Testing Equipments

Features

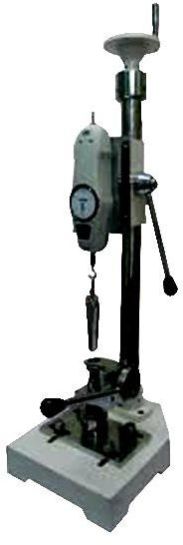

• IMADA Push- Pull force gauge of 50 kg
• Vertical stand to hold the gauge with arrangement to change the position of gauge.
• Base which house the frame to grip the attachment.
• Button Pull Fixture    - Connected with force gauge.
• (Product Code: FT02A)

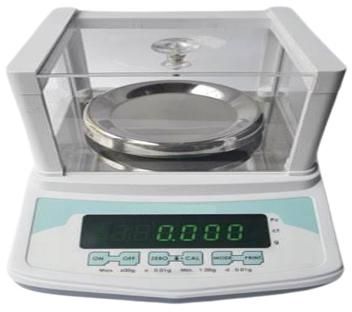

Features

•  Effective measures GSM of fabric and other products like yarn and garment.

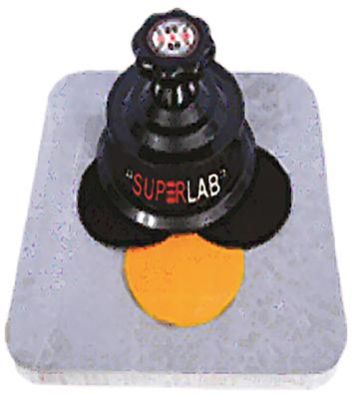

• A tool is offered to cut fabric of specific size and if weighed on the scale offered, the reading displayed is the GSM of that fabric.
• Gives precise readings.
• Has durability and enhanced longevity

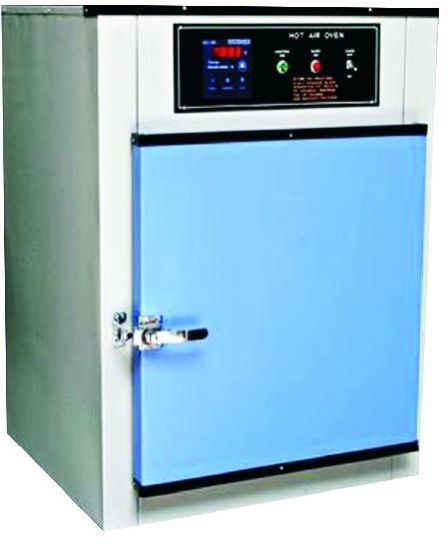

Features:

• The warm air is evenly distributed throughout the chamber through efficient air circulating fan on top of the chamber.


• Digital Temperature Indicator Cum Controller controls the temperature inside the test chamber.


• Inner walls are of stainless steel and outer walls of mild steel sheet.


• Chamber is provided with two ventilation ports.


• Long life.

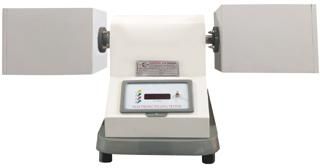

Features:

• Consists of two wooden cubical Boxes with inside surfaces lined with special standard cork sheet and outside surfaces beautifully laminated.


• Consists of geared motor which rotates the boxes about their central axis


• Pre-set Digital Counter stops the motor automatically after the desired number of revolutions


• Can be used for all types of fabric and weave patterns.


• Eliminates subjective assessment.


• More accurate. And User friendly.


• Adopted universal standard testing procedure.

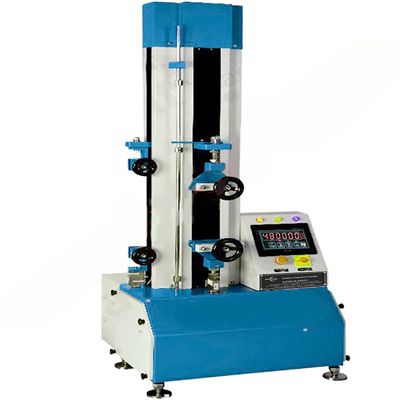

• The facility of controlling the test via Microcontroller with Max-force, Tenacity & Elongation.
• Data safety facility is also available.
• Max hold test can be carried very effectively.
• Extremely powerful internal software makes the machine versatile.
• With the availability in varied specifications, these machines are immensely used to check the breaking force of fabric, jute bag, HDPE bag, Carpet and non-woven fabric
• This machine furthermore renowned as a materials testing machine , is applicable to testing tensile tension, shearing force, peeling force, compressive tension and elongation of components, components, and finished merchandise for plastic, steel, textile, rubber, wire and twisted cord, synthetic chemicals, cowhide, etc.

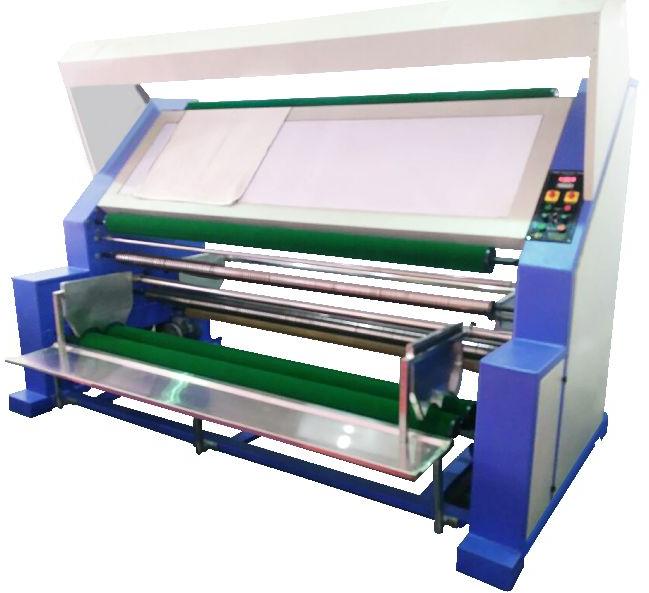

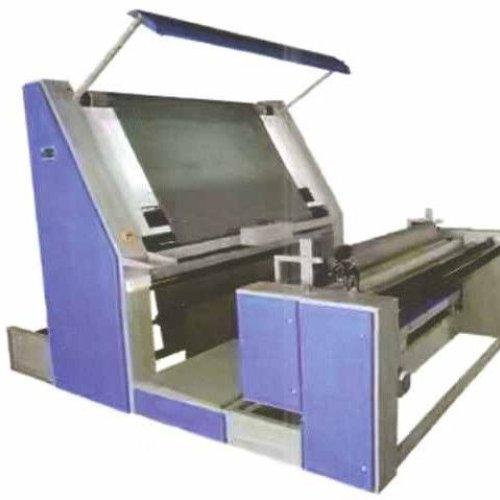

Features:

Large Viewing Glass With Two Way Lighting System Facilities Easy Viewing And Inspection With A Totally Detachable Body

Cnc Aligned Rollers With Shafts In Perfect Alignment For Proper Movement With Fabric, Complete With Inverter Drive For Flexibility Of Inspection Speed At The Touch Of A Button

Electricals Details

1) Ac Drive Make-innovance/delta/simens

2) Complete Panel Board With Internal Consoled Wiring

3) Start,stop ,reverse And Forward Function.

4) Cloth Measuring By Digital Counter

5) Tension Controller For The Maintaining Tension On The Fabric

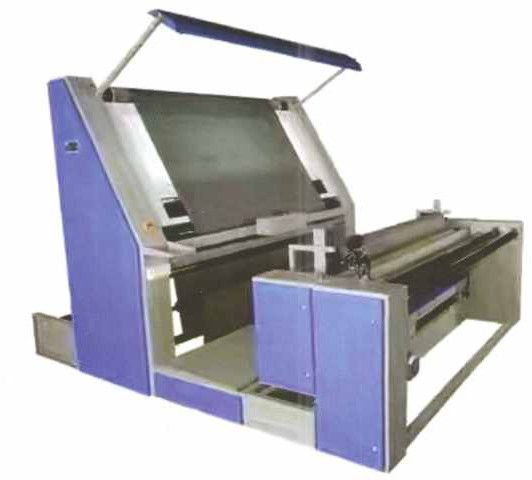

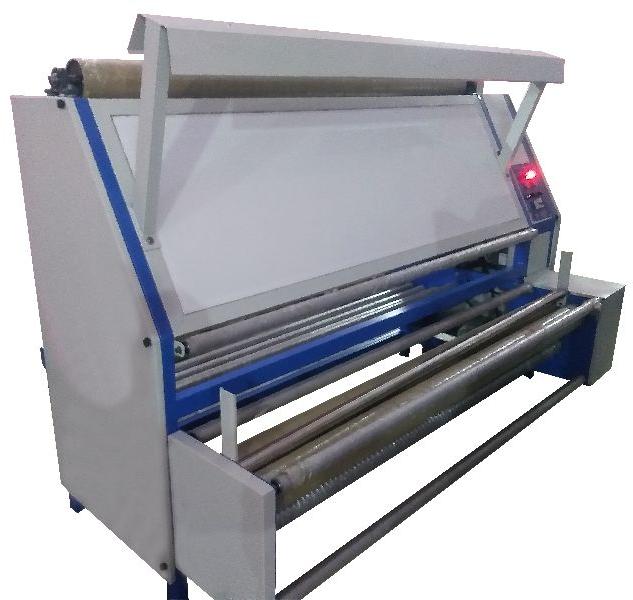

Features:

Large viewing glass with two way lighting system facilities easy viewing and inspection with a totally detachable body

CNC aligned rollers with shafts in perfect alignment for proper movement with fabric, complete with inverter drive for flexibility of inspection speed at the touch of a button

Convenient hand pendant for easy, immediate control to inch forward/backward

Emergency stop functions incorporated Ÿ The machine comes fitted with meter counter for cross checking as well as a fabric holding tray

The system consists of a variable speed AC motor with its attachable timer relay system. AC boards and electronics form an internal part of the system

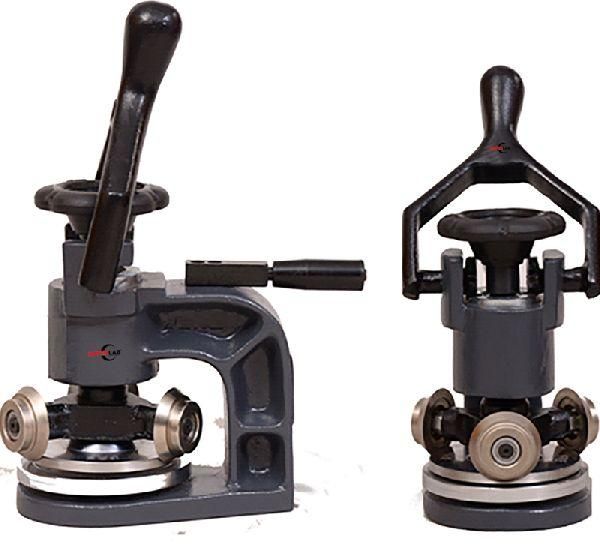

• Reliable rapid, and easy to use.
•  Depth of cutting up to 5mm.
•  Special finishes for contacting surfaces to avoid of specimen slippage.

Features

•  Reliable rapid, and easy to use.
•  Depth of cutting up to 5mm.
•  Special finishes for contacting surfaces to avoid of specimen slippage

features :

• effective speed ratio of outer pegs to inner pegs
• 4 specimens can be tested simultaneously.
• maximum load (corresponding to pressure of 12kn/m²): 790g
• comprise of stainless steel balls.

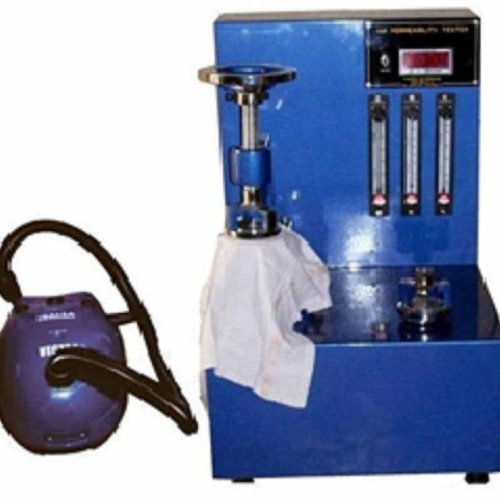

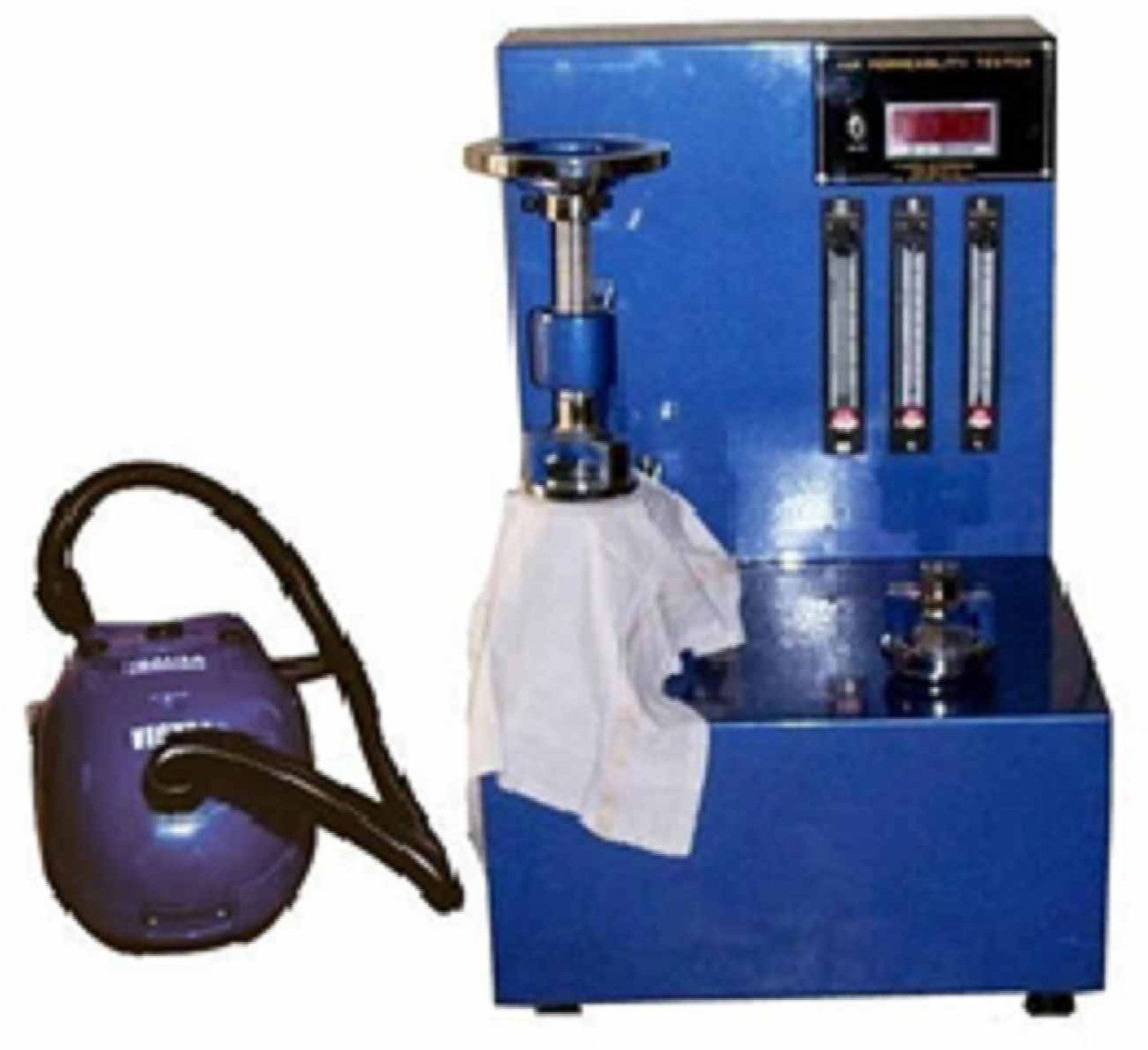

• Air Permeability Tester for textiles consists of an arrangement for holding the test specimens between two flat faces so as to expose a known area to the flow of air through it, a vacuum system to draw air through the exposed area of the test specimens.
• There is an arrangement to measure the volume of air flowing through the test specimen, and arrangement to measure the pressure drop between the faces of the test specimen

• Anolagl Iindication of readings
• Manual Clamping
• Enhanced storage facility allows building a vast data library of all tests carried out at various points
• Simple to operate
• This tester evaluates material test and provide reliable data.

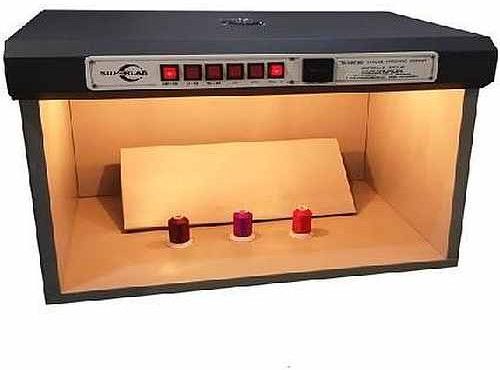

Features :

• Cabinet is made of MS with strict adherence to international standards.
• Supplied with major tube lights & bulbs for quick and accurate color assessment.
• Fitted with Electronic/ballasts for Instant start & power saving to safeguard the expensive & sensitive tube lights & bulbs
• No warm-up; No flick; No heat emission; Elapsed Time displaying of each light source.
• Energy saving; Efficient illumination.
• Compact; High quality with low price.
• Button Switches

Features:

·         In accordance with industrial standards, these chambers are manufactured

·         Rust proof finish

·         Excellent durability

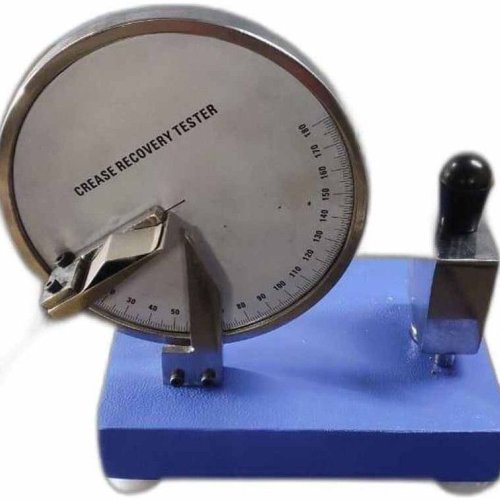

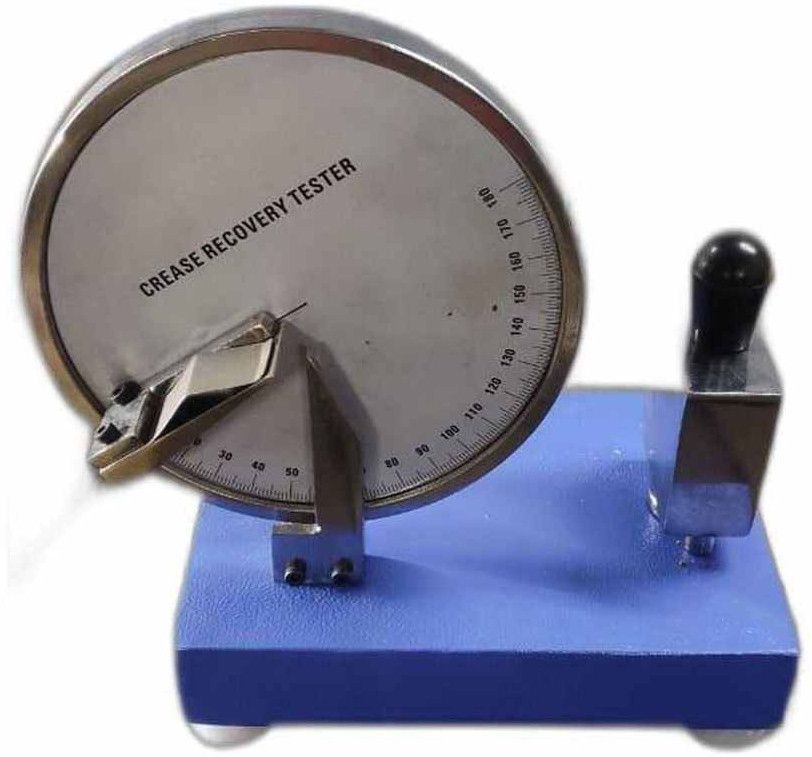

• Made of heavy caste base with all parts of stainless steel
• Imported Acrylic Sheet used for making the Rotating Dial.
• To make the movement smooth the Dial moves in a Brass bush.
• The same base has both the Steel Creasing Load and two Round Steel Plates for pressing the specimen.

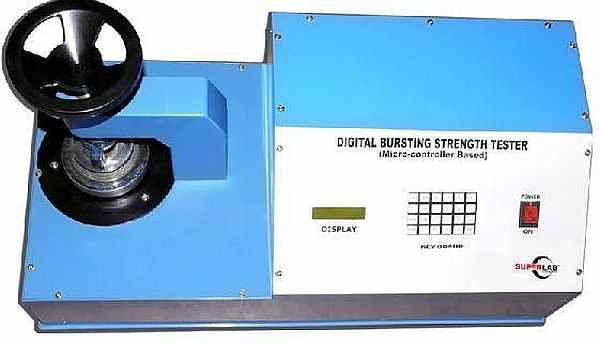

• Digital indication of readings
• Manual Clamping
• Enhanced storage facility allows building a vast data library of all tests carried out at various poi

Features:

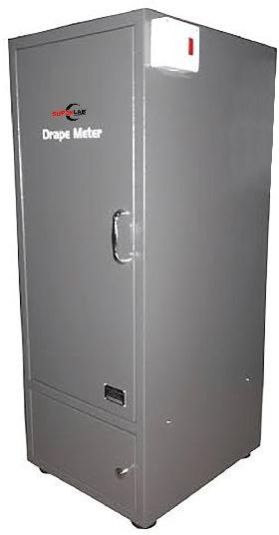

·         Drape meter to determine the draping/hanging phenomenon of fabrics.

·          With developing chamber

·         Ergonomic latest design with stylish appearance.

·         Supplied with manual where calculation for drape coefficient is given.

·          Complete with all accessories – ammonia paper, template etc.

·          Weight : 36.6 kg

·          Supplied with calibration & inspection certificates.

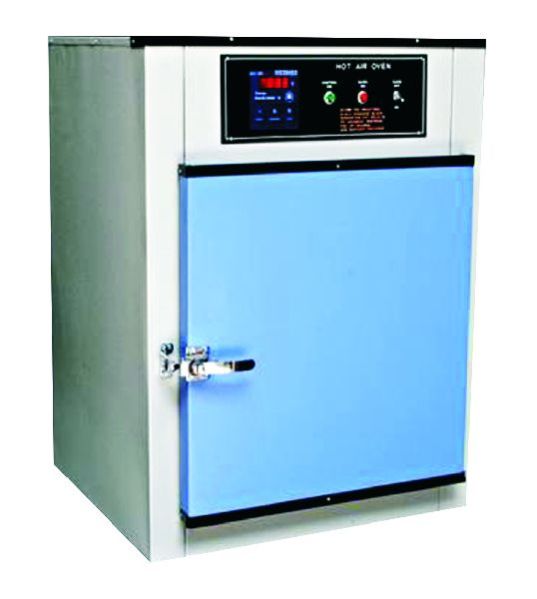

 Specification:

• Inner Chamber Construction      : Stainless Steel with air circulation fan
• No. of Shelf                              : 3 Shelf (removable)
• Temperature Range                  : Ambient to 250°C
• Temperature Sensitivity            : ±0.1°C
• Electric Supply                         : Single phase 220 Volts, AC Supply
• Heater Supply                          : 1000 watt Single Phase
• Inner l Dimensions of the UNIT  : 18" X 18" X 18"
• Net weight of the unit               : 30 kg.

Features:

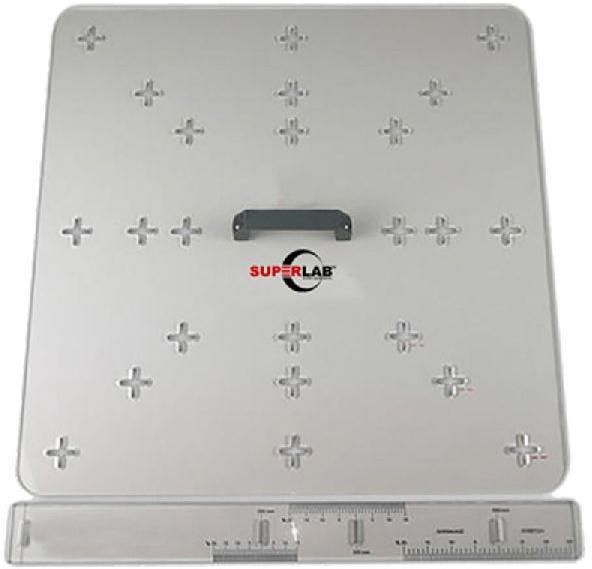

• To determine directly the % dimensional change (shrinkage) in all types of fabrics.
• Fine calibrated Shrinkage Template with 18" x 18" & 10" x 10" benchmarks length-wise & width-wise.
• Calibrated scale to evaluate shrinkage & stretch directly Up to 15%.
• Two fine tipped black & yellow fabric markers are supplied for accurate marking on light & dark colour fabrics.
• The Shrinkage scale of  18” length with 6” +/- 1”, 9” +/-2”, 12” +/-2” & 15”  +/-2” area with ready %  readings.
• Template and shrinkage scale made up of  transparent polymers plate to apply standard pressure

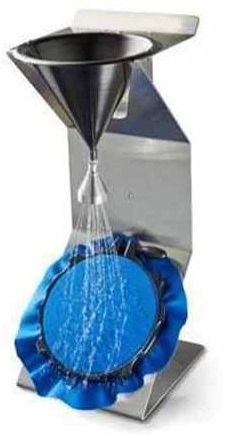

• spray tester consists of a stand
• for holding the spray device the button portion have a sample holder at 45°
• spray device made of glass (or plastic) laboratory funnel which is connected to the spray nozzle by a rubber tube.
